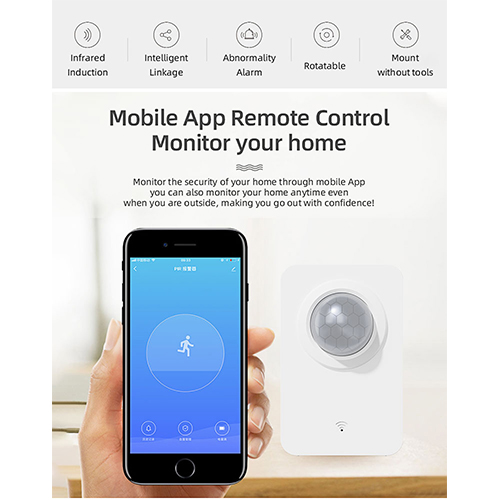

Smart WiFi PIR Motion Sensor

Item:YN-WPM-S01
WiFi protocol
Battery: LR6-1.5V/AA*2(Alkaline battery)
Detect Angle: 128°
Detect Distance:≤8 Meters
WiFi Type: 2.4GHz
WiFi Standard: IEEE 802.11 b/g/n
Working Temperature: 0℃~50℃
Working Humidity:10%~85% RH
App: Tuya Smart or Smart Life
Support Android 4.4+oriOS 8.0+ version
Includes adhesive tape and screws, base
Product Size(mm):70*45*35.6
Package Size(mm):141*101*42
Product Weight(g):105.40
Package Weight(g):119.10
Certification:CE/ROHS
MOQ(pcs):1000


Product Description

Live smart with Motion Sensor. You shouldn't have to worry about the security of your home while you're away.Smart Motion Sensor is the latest innovation in smart home technology. Designed to help you stay updated on activity occurring in your home, the Smart Motion Sensor uses infrared technology to detect unknown movement and notify you of any irregularities.



Product Features:

Wifi Connection, APP Alerts:

Wifi motion sensor, APP Remote Control. Minimalist screen,easy operation. Real-time monitoring of whether there is anyone through the Tuya APP, when there is movement detected, the alert will be push to your phone.



Real-time monitoring:

Mobile APP real-time control you can keep track of the security situation at home through the mobile phone APP,and you can keep track of the security situation at home when you are away,so you can travel with peace of mind!



Smart Recognition:

Intelligent recognition pet immunity Adopting Fresnel optical lens detection technology:It can prevent small pets from falsely reporting that pets weighing less than 25KG.



Powerful Detection:

Ultra-wide detection at a glance Effective detection 128º wide angle,can be detected in 10 meters of space in front. Light intensity,accurate detection Even when the light is strong and the light changes greatly,it can accurately alarm.



Improved Technology:

Crawling through detection alarm Reflecting mirror detection technology:effectively overcome the traditional shortcomings of detectors sneaking and crawling without warning.



User Guide

How to use:

Open the back cover of battery compartment,take out the insulation sheet inside.



Checklist before using the device:

a. Your smartphone has connected to a 2.4GHz wifi network.

b. You have input the correct wifi password.

c. Your smartphone must be Android 4.4 + or iOS 8.0 +.

d. Your wifi router is MAC-open.

e. If the numbers of devices connected to the router reach the limit, you can try to disable a device to cavate the channel or try with another wifi router.



How to set up:

1. Use your smartphone to scan QR code, or  search“Smart Life” app in Google play or APP Store to download and install.

2. Create an account with your mobile number and authentication code.

3. Connect your mobile to your wifi router , click“+” at the upper right corner of homepage or click “Add Device” , then select “ Motion.



Detector (Wi-Fi)”under“Motion Detector” type from “Security & Sensors”.



4. 1) If your wifi router only open 2.4GHz, enter the wifi password, if the LED indicator is not blinking rapidly, hold the reset button for about 5 seconds till indicator blink quickly, it will connect to wifi router automatically.

2) If your wifi router open both 2.4GHz and 5GHz with same name, please choose“AP Mode”, enter the wifi password,hold the reset button for about 5 seconds till indicator blink slowly, connect your mobile to the device’s hotspot: “SmartLife-XXXX”, click to return to App interface,it will connect to wifi router automatically, the

configuration complete. Push the back cover to close the battery compartment.

5. You can mount the sensor with adhesive tape or secure with screws on the wall.



NOTES: When you use the first time, it will alarm when the PIR sensor detects your movement. There will be 30s intervals after you leave the detection range and pass by again, it alarms.
