Smart WiFi Round IR Remote Control

Product Description：

With the Universal IR Remote Control, you may use your smart phone to control home appliances, such as STB(Set-Top-Box), TV Box, TV, Air Conditioner, Fan, DVD, etc. Compatible with most of brands. Besides, it has Learning function, allows you to copy the key function of original remote control to App.But not compatible with the home appliances which use RF or Bluetooth remote control.

Product Features:

1. Massive IR Code Database:

Support 4000+ brands, 50000+ IR Code on cloud, supported devices library is constantly being updated by the cloud.

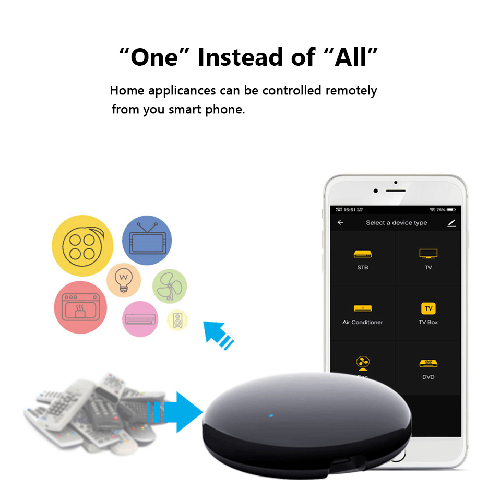

2. All in one App Remote Control:

Turn all IR remote controllers into one APP on smart phone/tablet.Remote Control your home appliances by using App in your smart phone anywhere anytime.

3. Easy to install and add to app:

Once you plug the cable line into the device, the device starts to start, and then select the app's "auto scan" function to find device. The whole process takes only a few minutes.

4. Voice Control:

By connecting Intelligent speaker, such as Amazon Alexa, Google Home, you are able to control your home appliances by voice.

5. Scenario and Automation in App:

A scenario consists of 1 or more actions. By creating an “Scenario”, you may control multiple devices with one tap; By adding an “Automation” and interworking with other smart home devices, Wi-Fi remote control is able to execute actions automatically according to conditions, such as device status, weather and time.

6. Timer and Automatic Trigger:

According to your living habits, set time switches for your home appliances, such as turning on/off the air conditioner at regular intervals.

7. DIY:

Customizing buttons in the App if your home appliances brand is not in the list or not supported.

8. Compatibility:

Compatible with Android 4.4 or newer and iOS 8.0 or higher.Works with Amazon Alexa, Google Assistant, Siri(iOS 12.0 or later), Tmall Genie, Tecent Xiaowei, DingDong, Rokid, DuerOS, etc.

9. Share Devices

Share your connected devices with other families and friends, so you all can control the same devices.

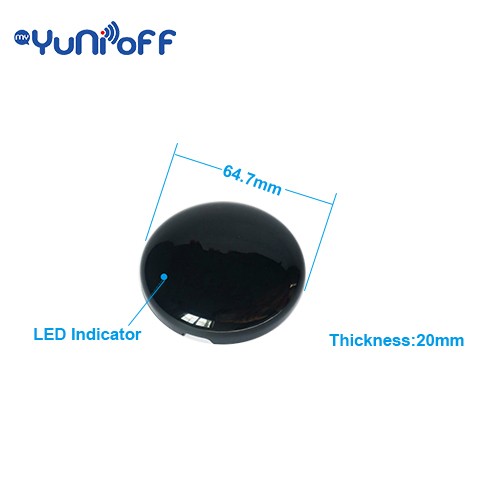

10. Mini Size And 360° Coverage:

Super mini body, and it occupies little space. Supporting intelligent scene control. No dead angle signal coverage in all directions.

How to Set up

1.Use your phone to scan QR code or search"Smart Life" app in Google Play store orAPP Store to download and install it.

2.Create an account with your mobile number and authentication code.

3.Connect your mobile to your WiFi router at your home, dick"+"at the upper right corner of homepage and select"Universal Remote Control from"Others".

4.Supply power to the remote control,

1) If your wifi router only open 2.4GHz, if the indicator is not blinking rapidly, hold the reset button for about 5  seconds till indicator blink quickly,enter wifi password, it will connect to wifi router automatically.

2) If your wifi router open both 2.4GHz and 5GHz with same name, please choose“AP Mode”, hold the reset button for about 5 seconds till indicator blink slowly, enter wifi password,connect your mobile to the device’s hotspot: “SmartLife-XXXX” , then click to return to App interface,it will connect to wifi router automatically. After connection succeed, the configuration complete.

5.Click"Smart IR",then click"Add Remote Controlr, choose the device type and its brand you want to add, then press at least 3 buttons to test if the device reacts propery, if yes,you can control the device now.You can click"pen"icon to edit the device with unique name,to avoid conflict with other devices with the same brand in one roomwhen use. (e.g.Jack's TV)

6. If a remote control for an electric device can not be found in the existing brand ibrary, you can copy the keys and enable them to control the electric devices. It now supports TV,TV box,Set-Top Box and Fan.

7.After a key is copied successfully,press it to test whether it works properly.you also can choose to click"done" to save or copy other keys.

8.When you can not find the brand of added device in the list,you can click DIY"to copy function keys of other brand's remote control to control it.

9. If you want to edit or add other buttons,just dick"Edit" at the right upper corner.

Notes:

1. It supports signal frequency learning at 38KHz carrier frequency, if the IR remote unable to receive commands from IR device,it is likely that the carrier frequency of IR device does not match, unable to study commands.

2.DIY does not support voice control.

FAQ:

1.What devices can control with WiFi remote control?

You can control TV, Fan, Air conditioner and other IR enabled appliances.

2. What should I do when I cannot control the devices with this remote control?

Firstly, make sure your mobile device and the WiFi remote control are adjacent and connected to the same network,Assure the WiFi infrared remote control is always power on.

3. Can I control devices through 2G/3G/4G network?

The WiFi remote control and mobile device are required to share the same WiFi network when adding WiFi remote control the first time.After device configuration succeed,you can remotely control devices through 2G/3G/4G/5G cellular network.

4.What should I do when device configuration process has failed ?

you can:

Check whether the remote control is powered on or not.

1)Check whether your mobile device is connected to2.4GHz WiFi network.

2)Check your network connectivity, make sure the router is working properly.

3)Make sure the WiFi password entered is correct when adding remote control.

5. Can it go through walls or be used to control IR devices in upstairs/downstairs rooms?

IR can not go through walls, so make sure there are no obstacles between IR remote and IR enabled devices.

6. We have Huawei/Xiaomi set-top box, why is it not connecting?

There are two types of set-top boxes, OTT and IPTV,the most obvious difference is that IPTV supports living streaming while OTT does not. please make sure you have matching TV box before setup.

7.What we should do when we are unable to use IR remote to control an electric device?

Please check the following:

1)IR remote network in good condition(click any key on the remote control panel in the app and see whether the indicator light starts flashing. if it flashes, it indicates to work properly.

2)There is no object blocking between IR remote and electric device

3)The factory remote control of electric device is IR enabled.(cover the top of the remote control with hand or any object, then press any keys. if the device does not respond, it is IR based, otherwise, it is Bluetooth or RF based remote control.)
