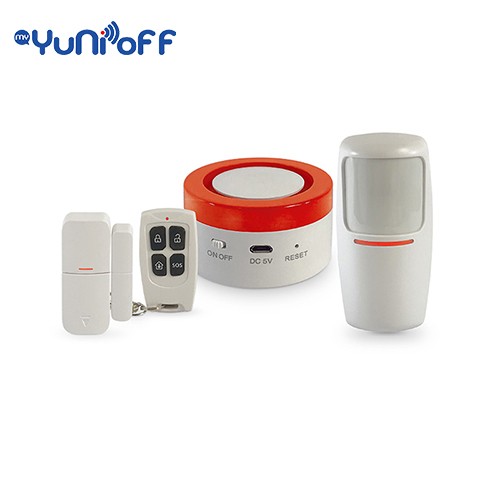

Smart RF433 Sensor Kits

Product Description：

WiFi Alarm System is Used to Guard the Area as Well as Property Using WiFi Technology. The Main Objective of WiFi System Fitted With the WiFi Module is to Determine the Fact of Invasion to the Controlled Territory and to Aware the Owner by the Mobile Phone (Tuya App).

It can linkage WIFI camera. When you go to work, at away arming mode, when PIR sensor or door/window sensor detects an abnormality, alarming message will be pushed to APP, and the linkage WIFI camera will start recording video.

It can linkage smart switch.For example, when you come home, door sensor is triggered, the linked smart switch will be triggered to turn on the light, air conditioner and curtain automatically. You will never come back to a dark and cold home.

On-site 120DB high-decibel alarm, flashing lights and other alarm modes. When alarm is triggered, it will alarm with sound and light flash and push alarm message to phone APP. (The siren sound volume and the flashing light on/off can be adjusted by yours.

Receive alarm push message from 433MHz PIR sensor, door & window alarm sensor. Can store and inquire APP alarm records.

Compatible perfectly with Amazon Alexa for voice control. On-site 120DB high-decibel alarm, flashing lights and other alarm modes.

When alarm is triggered, it will alarm with sound and light flash and push alarm message to phone APP. (The siren sound volume and the flashing light on/off can be adjusted by yourself).

Product Features:

APP CONTROL and Alexa

Arm, disarm and other settings this WiFi home alarm system via "Tuya Smart" APP on iOS/Android Smartphone. Just connect to WiFi, but only support 2.4GHz Wi-Fi .Alexa function only support to Arm and disarm ,Other function don’t support via Alexa.

FREE ALARM NOTIFICATION PUSH

No monthly fee, Remind you once someones triggered the sensors. Adjustable alarm volume (70dB/80dB/90dB) and adjustable alarm time(5~180 seconds).

TIMING SETTING

Set this WiFi smart siren alarm system to arm/home arm/disarm automatically in certain mode as per your scheduled times. Automatically manage your home security.

DIY ALARM SYSTEM

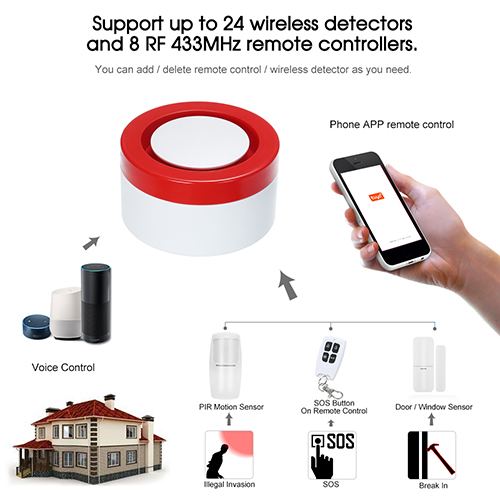

Supports max up to 24 sensors and 8 remotes and users can customize their names that you can know which sensor was triggered from the alarm notification push.

Note information as following:

Indicator light keep flashing: Not connect to WiFi

Arm: Alarm with sound and light flash

Home Arm: Only light flash to alarm

Disarm: Only SOS alarm available

Timer Function: Auto arm/ home arm/ disarm

Detectors: Max 24

Remote Controls: Max 8

Timing Control: Arm / home arm / disarm

Wireless Frequency: 433Mhz

Can be installed more than one siren and be placed in different places. So you can hear the alarm as possible.

User Guide

Download the app and register

Search for"Tuya Smart"or scan the QR code below to download the app and register.

How to connect WiFi network,#1:"Default mode"

① Open the APP homepage, press"+"in the upper right corner to add devices → select"ALL devices"→ select"Alarm system".

② Re-open the smart siren switch, re-connect the power, press and hold the RESET button for 5 seconds, the indicator flashes quickly,ready to connect WiFi.

③"Confirm indicator quickly blink"→Enter WiFi password (2.4G WiFi only) → OK

How to connect WIFI network,,#2:"compatibility mode"

If the default way to connect WiFi is unsuccessful,you can select"AP Mode".

① Open the APP homepage,press"+"in the upper right corner to add devices → select"ALL devices"→ select "Alarm system".

② Click on"AP Mode"at the top right of the app.

③Re-open the smart siren switch,re-connect the power, press and hold the RESET button for 5 seconds, the indicator light flashes quickly, continue to press and hold the RESET button for 5 seconds,the indicator light flashes slowly, ready to connect.

④"Confirm indicator slowly blink"→Enter the network password(2.4G WiFi only)→ OK → Go connect.

⑤Find" Smart Life-xxx"in the WiFi list of your mobile and click Connect→ Return to"Tuya Smart" APP.

WiFi connection notes:

1. Does not support 5G router..

2.If the above two way connection both fail, please try to restart

the router.

3.Siren host and mobile phone as close as possible to the router.

Add detectors and remotes:

① Click on the APP homepage"accessories"→ select"The detector"or"The control"→ click on " add".

② Click"OK"→ smart siren light keep on→ accessories send signals→ smart siren light flash 3 times, adding is successful.

Edit the accessory name;

In order to make it easier to distinguish different alarm events, you can edit the accessories name (within 24 characters).
