YN-SW01/YN-SWM01
Screen:1.69" TFT-LCD,240*280,full touch.
Material: aluminum alloy middle frame, silicone strap.
MCU:Nordic nRF52840.
Sensors:PPG heart rate sensor,three-axis sensor,touch chipset.
Mic:1 digital silicon microphone.
Waterproof:5ATM (50 meters).
Battery:300mAh lithium polymer.
Charging:magnetic charging,<2.5 hours can be fully charged.
Bluetooth:BLE5.0.
Support Alexa Built-in function and Tuya smart control function.
Product Size(mm):
37.1*255.94*13.21/33.60*241.34*12.86
Package Size(mm):110*75*55
Product Weight(g):42/34
Package Weight(g):85/79
Certification:CE,FCC,TELEC,ROHS,REACH, UKCA,UN38.3,MSDS
MOQ(pcs):3000
Product Description:
This watch comes with a business sport design that looks stylish, fashionable, and fit for men and women.There is one physical button on the right side of the case. It is responsible for the function of turning on or running back. The reverse side of the device received a typical configuration,these are magnetic contacts for charging and a heart rate sensor.
The smart watch body is made out of Metal with an Aluminum alloy frame case while the strap is removable and available in silicone.Regarding the display screen.This new smart watch has a 1.65-inch full TFT LCD touch screen created with a resolution of 240 x 280 pixels.The wearable is also packed with a variety of watch faces and is available in color.
Product Features:
14 Sports Modes.
Supports the following 14 sport modes:Outdoor run,Indoor run,Outdoor walk,Indoor walk,Hiking,Outdoor cycle,Indoor cycle,Cricket,Yoga,Workout,Pool swim,Open water swim,Rower,Elliptical.You can track your all-day activity including steps,calories burned,distance,heart rate,exercise duration and more.You can also activate GPS tracking on your phone and track routes you have travelled.(Actual watch does not have built-in GPS).
24-Hour Real time Heart Rate Monitor.
The advanced heart rate sensor monitors your heart rate automatically all day.You can check the heart rate Day/Week/Month/Year data graph in the app.(The heart rate green light flashes every 5 minutes when Continuous HR Measurements turns on,you can turn off Continuous HR Measurements when sleep).
Blood Oxygen(SpO2), Stress & Sleep Monitoring.
Manually detect your Blood Oxygen(SpO2) level and automatically detect Stress status data to help you keep an eye on your health. The watch will remind you to relax when your Stress data is over 80 or you can use the watch to do “Breathing training” to relax.
Automatically monitor and analyse your sleep quality (Will only record sleep lasting more than 3 hours). The watch strap is made from silicone rubber that is soft and comfortable to wear meaning it won't disturb you during sleep.
Stay Active.
This watch also features with many practical tools, such as the Walk-around Reminder which can be set to send gentle vibrations to stay active every hour throughout the time schedule of your choosing through the App.
Call /Message/SNS Alerts and Display.
After connecting the watch with your phone in the App and notifications enabled, you can get a vibration alert and display straight to the watch dial.Any of these App notifications can be pushed through to the watch:of calendar,Emails,call,phone Messages and SNS messages including Facebook,Twitter,Instagram,WhatsApp, Messenger,LinkedIn,LINE,Viber,Skype,Kaokao talk,VKontakte,Tumblr, Snapchat,Telegram,TikTok,Youtube,Pinterest.
(Please note: this watch does not have support to reply to messages or make/answer calls as it does not support a Sim card)
5ATM Waterproof.
This watch has a 5ATM waterproof standard which means you can wear it when washing your hands, running in the rain,swimming or in the shower.(Please Note: Not suitable for diving, swimming in the sea, or sauna).To ensure longevity of the watch please wipe the waterproof watch as soon as possible after soaking in water.
Long Battery Life with Magnetic Charging.
This watch can work up to 7 days usage time or 30 days standby time after just 2.5 hours of charging with the (included) magnetic charging method.The watch has a low battery reminder which will notify you when there is 10% left.
Adjustable Brightness.
This watch has 5 levels of brightness for you to choose from. It can be seen clearly in the not matter the light level.There is also an option to set Screen-on time from 5s to 20s on the watch,depending on your preference.
1.69-inch TFT-LCD Screen.
This watch has a 1.69 " TFT-LCD full touch screen, that makes it easy and quick to swipe the screen and select a function.One can also pick personalized watch faces or upload your personal pictures to customize your watch face,such as a selfie,families,pets,or more.
Heart Rate Monitor.
This smart watch will vibrate to alert you if your heart rate is abnormal during exercise.Ideally this watch should be worn two fingers above your blood flow on your wrist.The heart rate data is for reference only and cannot be used for medical purposes.If you need medical help, please contact a professional doctor.Please Note:Automatic heart rate monitoring is ON by default, you can disable/enable it in the App.
Music controller.
After connecting the smartwatch with the phone and when you listen to music,you can control music through the watch directly,including play / pause,previous song or next song,volume up/down.
Weather Notification.
After the watch is connected in the app and the weather notification turns on,this smartwatch can display the current weather and weather information of the next two days.Please Note: It will not be updated should it be disconnected.You can set temperature unit in the App:Click the app->My->Setting->Unit->temperature °F/°C.
APP-Exercise keeps you fit.
This smart watch is only compatible with the App. Please scan the QR code on your watch face to install the App (You can also scan the QR code in your user manual or download the App via the Google store or Apple store.)The watch's time will automatically sync with your phone after you connect the watch in the APP for the first time. The APP and watch support 8 languages,there are English,French,German,Italian,Spanish,Japanese,Russian,Portuguese.
User Guide
Screen display area
Function button
Heart rate sensor
Front side Back side
(1) Open the package and check the product.

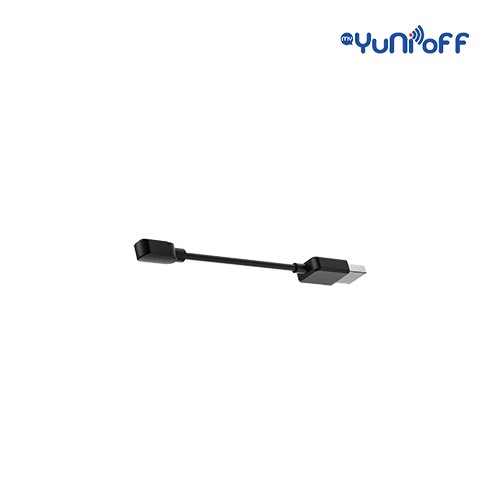

(2)Package contents:Smart watch (with built-in lithium battery);User guide;Charging cable.
(3)Connect the contact points of the magnetic charging cable to the contact points of the watch to charge and activate the device,and to turn it on.
(4)Search for the smart life in your phone's app store, and download and install the app; or scan the QR code to download the app from the web;In the app interface, set your personal information.
(5)Open the app,tap the“More” icon in the upper right corner, select "Add Device", select the device category, and select the device you wish to link in the corresponding search list. You may also link the device directly by scanning the device s QR code using the scan function.
Health
a) Watch
1.The watch will automatically record your data.
2.You can manually measure your heart rate, SpO2,and stress on the bracelet, moreover, it can monitor your heart rate and sleep throughout the day. You can manually operate it or set it to automatically monitor your health all the time.
3.To start an exercise.
4.Start the sports App on the bracelet, click an ICON of sports type and set the goal, then start to exercise.
b) App
1.Start"smart life",enable the Bluetooth feature,and grant the GPS positioning permission.
2.Light up the bracelet screen and bring it close to your phone.
3.Click "Bind Device" on the App,and select the bracelet model in the search results to bind.
4.Confirm the binding request on the bracelet.
5.Fill in your information and set your step goal on the App to complete the binding.
Basic Operations
1.Wear it correctly: make sure that the bottom sensor is properly attached to the skin,and the strap shall be one finger away from the wrist.
2.Touch operation:supports full- screen touch operations.Single click:select; long press:enter or confirm.
3.Touch key:has a touch key. Short press: return or close a notification.
Function Description
